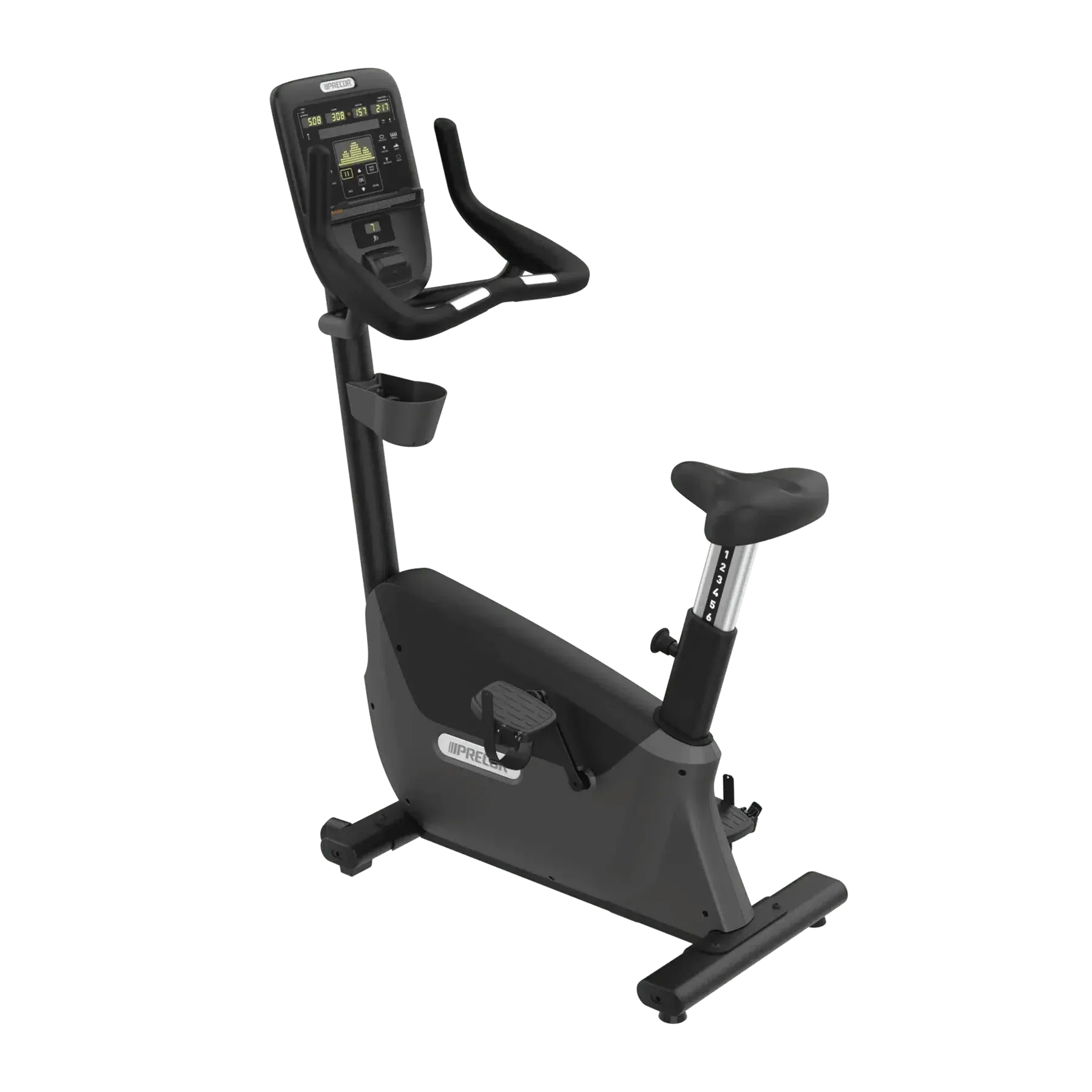

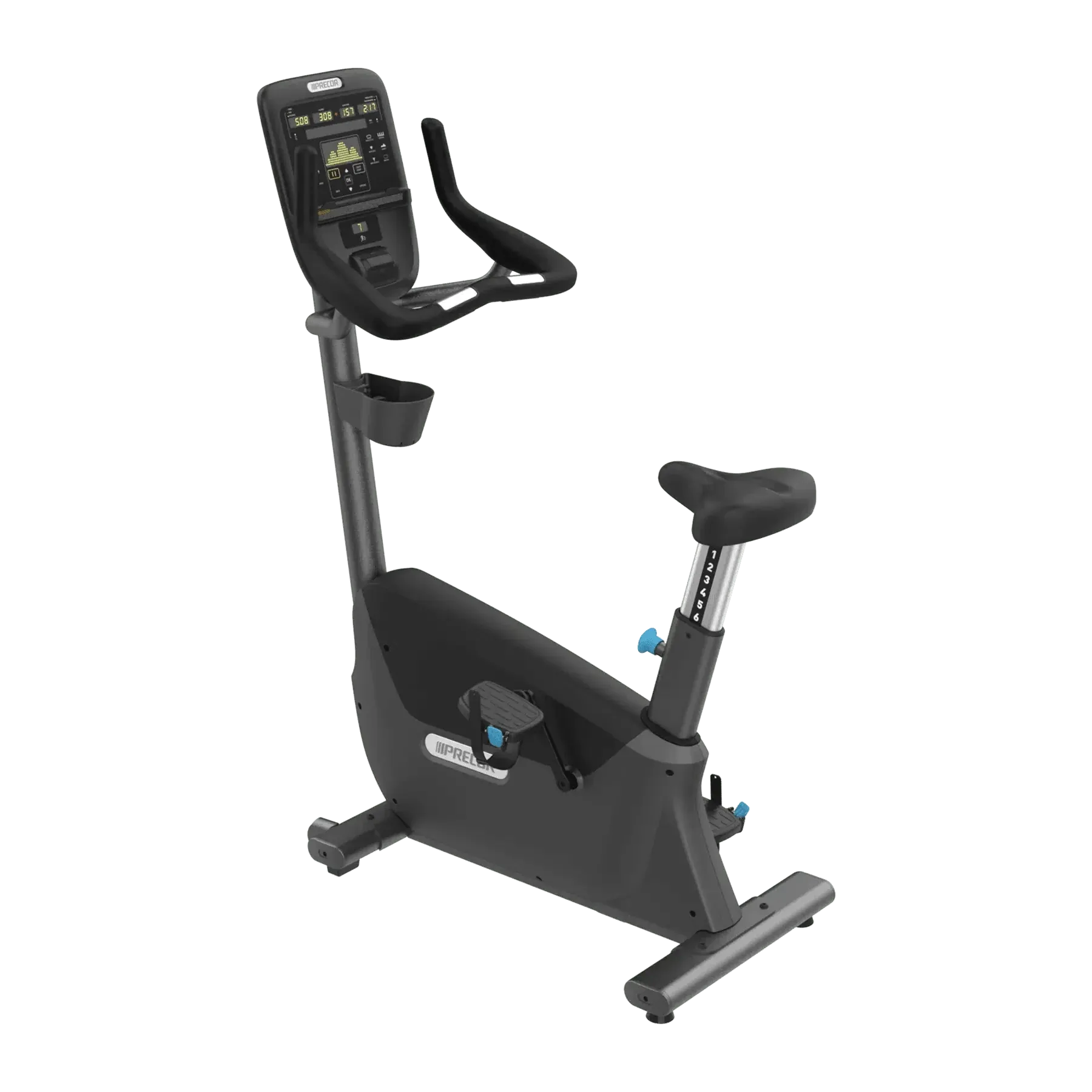

Enjoy the durability, performance, and comfort of working out on a professional-grade stationary bike. The Precor UBK 600 Line upright bike is equipped with a 500-watt single-stage drive system and a geometrically balanced seating system to ensure challenging but comfortable rides for years to come.
Features
- Commercial-Proven Design: The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the pedals or crank.
- Innovation for Superior Riding Comfort: Over-molded handlebars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The familiar pop-pin seat adjustment similar to other commercial bikes allows the user to easily change the seat to their desired height.
- P31 Console: An LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.
Equipment Features
| Cable Management | Optional |
| Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
| Accessories Holder(s) | Yes |
| Transport Wheels | Integrated |
| Universal Seat Mount | No |
| Frame | Two-step powder-coating process on steel frame. |
| Bearings | Pedal axles and bearings are designed for smooth operation and exceptional service life. |
| Seat | Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. |
| Seat Adjustment | Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height. |
| Handlebars | Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser's hands. Touch heart rate is integrated in the upright position. |
| Pedals | Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal. |
| Biomechanics | To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position. |
Resistance System
| Minimum Watts | 22 (level 1 at 20 RPM) |
| Maximum Watts | 500 (level 25 at 150 RPM) |
| Single-Stage Drive System | The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression. |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Console Features
| Minimum Watts | 22 (level 1 at 20 RPM) |
| Maximum Watts | 500 (level 25 at 150 RPM) |
| Single-Stage Drive System | The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression. |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Heart Rate Monitoring
| Touch | Touch heart rate sensors located conveniently on handlebars. |
| Telemetry | Integrated telemetry heart rate reads heart rate from a user's 5 KHz HR chest strap. |
| Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. |
Integrated Entertainment Options
| Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
| Video decoding | MPEG-2, MPEG-4, H.264 |
| Global TV Support | NTSC, ATSC, PAL, SECAM, DVB-T/T2/C, ISDB |
| Mobile Device Charger | Yes |
| Reading Rack | Integrated |
| Personal Viewing System (PVS) | Optional 15.6 in / 39.6 cm screen |
| Video inputs | RF |
Network Capabilities
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
| CSAFE Enabled | Yes |
Equipment Specifications
| Standard Shroud Color | Gloss Metallic Silver Black Pearl |
| User Height Range | 58 to 78 inches / 147 to 198 cm |
| Maximum User Weight | 350 lb / 159 kg |
Equipment Dimensions and Weight
| Height with PVS | 70 inches / 178 cm |
| Length | 43 in / 109 cm |
| Width | 21 in / 53 cm |
| Height | 59 in / 150 cm |
| Equipment Weight | 144 lb / 65 kg |

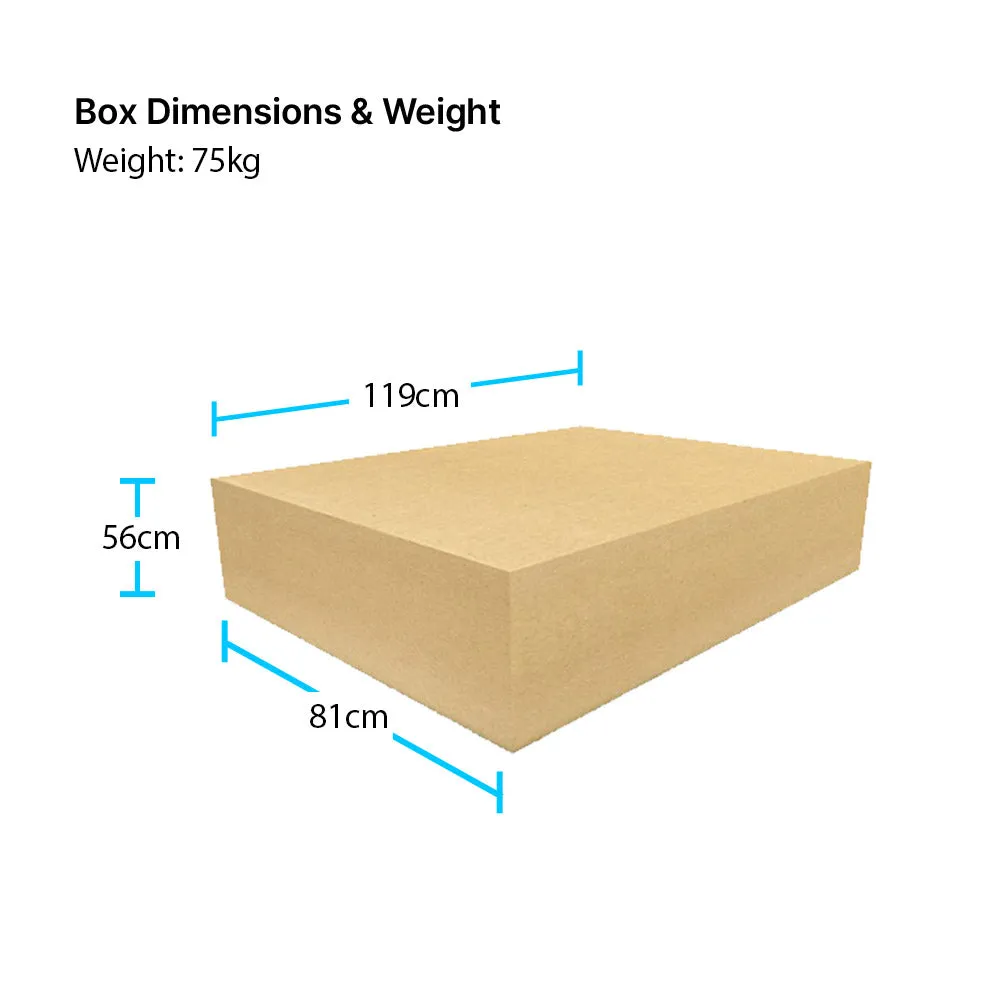

Shipping Dimensions and Weight
| Length | 47 in / 119 cm |
| Width | 22 in / 56 cm |
| Height | 32 in / 81 cm |
| Shipping Weight | 166 lb / 75 kg |
Power Requirements
| Equipment | No voltage ratings. Self-Powered |
| International 240 VAC | Applicable country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
Package Contents
- 1 x Precor UBK 635 Upright Bike
- Assembly instructions
- Hardware for assembly
- Power adapter (optional)
Warranty
Manufacturer's warranty included. Contact the seller for details.
